Solar street lighting · RF network · Web console
AKAYSIS connects every solar street lamp to one web console. See each lamp live, change its settings from the office, and receive WhatsApp and e-mail alerts when something needs attention.
What is AKAYSIS?
A solar street lamp normally works on its own. If it fails, you hear about it from the street. AKAYSIS gives every lamp a voice and puts the whole site on one screen.
Lamps are invisible after installation. A dark street, an empty battery or a broken panel is found by a complaint or by a site visit.
Each lamp sends its battery, solar and lamp status over radio to a gateway on a pole. The gateway passes it to the AKAYSIS web console.
You see every lamp, change settings from the office, and get alerts first. Problems are fixed before anyone notices the dark.
Diagnose from the desk
Alerts on WhatsApp and e-mail
Correct charge settings, remotely
Energy and status history
How it works
Battery, solar panel and lamp status
On a pole, on its own solar power
Dashboard, map, settings
Alarm messages
Alarm reports
Coverage
A single AKAYSIS RF Gateway talks to up to 200 solar lamps within a 5 km radius. No cables, no SIM card in every lamp, no per-lamp data plan.
lamps on one gateway
radio radius
internet link for all

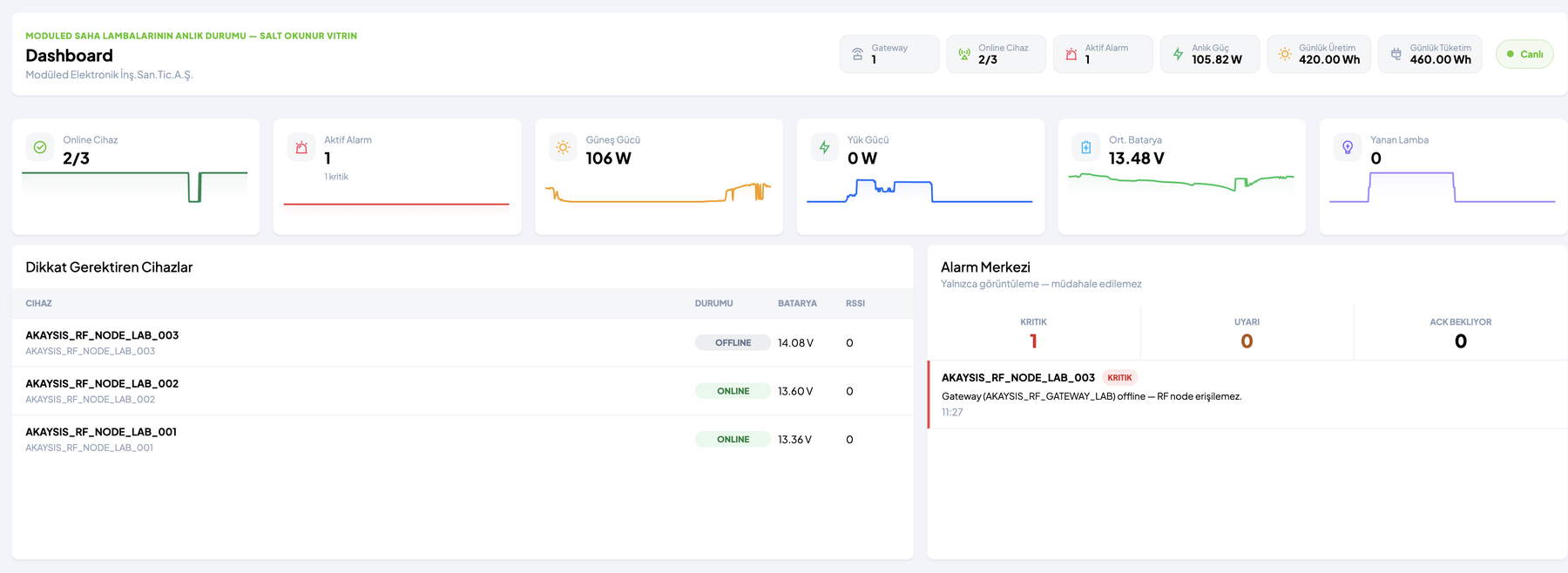

Web console · Dashboard
Real screen · interface in English and Turkish ·

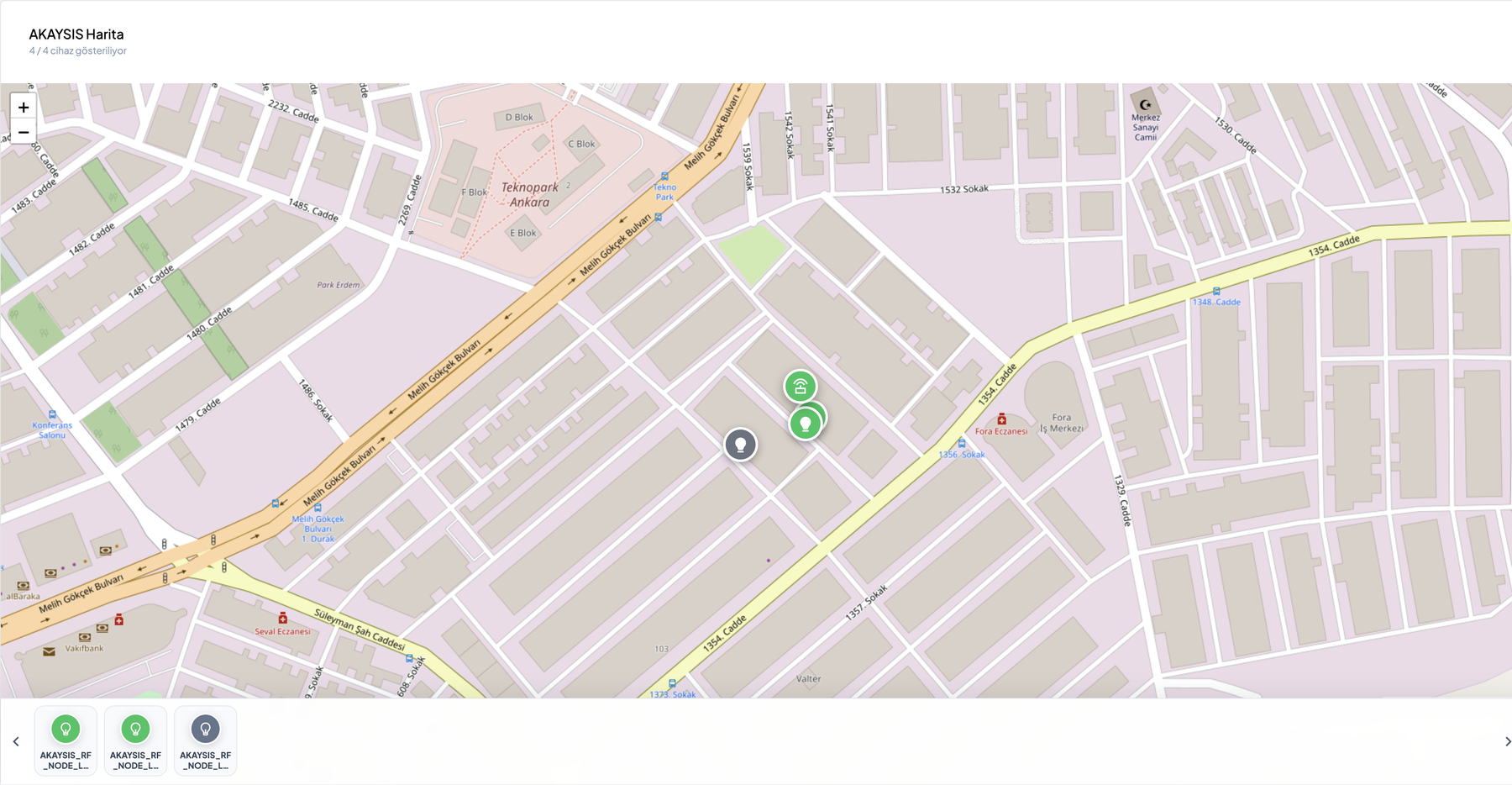

Web console · Map
Lamps and gateways are placed at their real locations. Colours tell the state without opening anything.

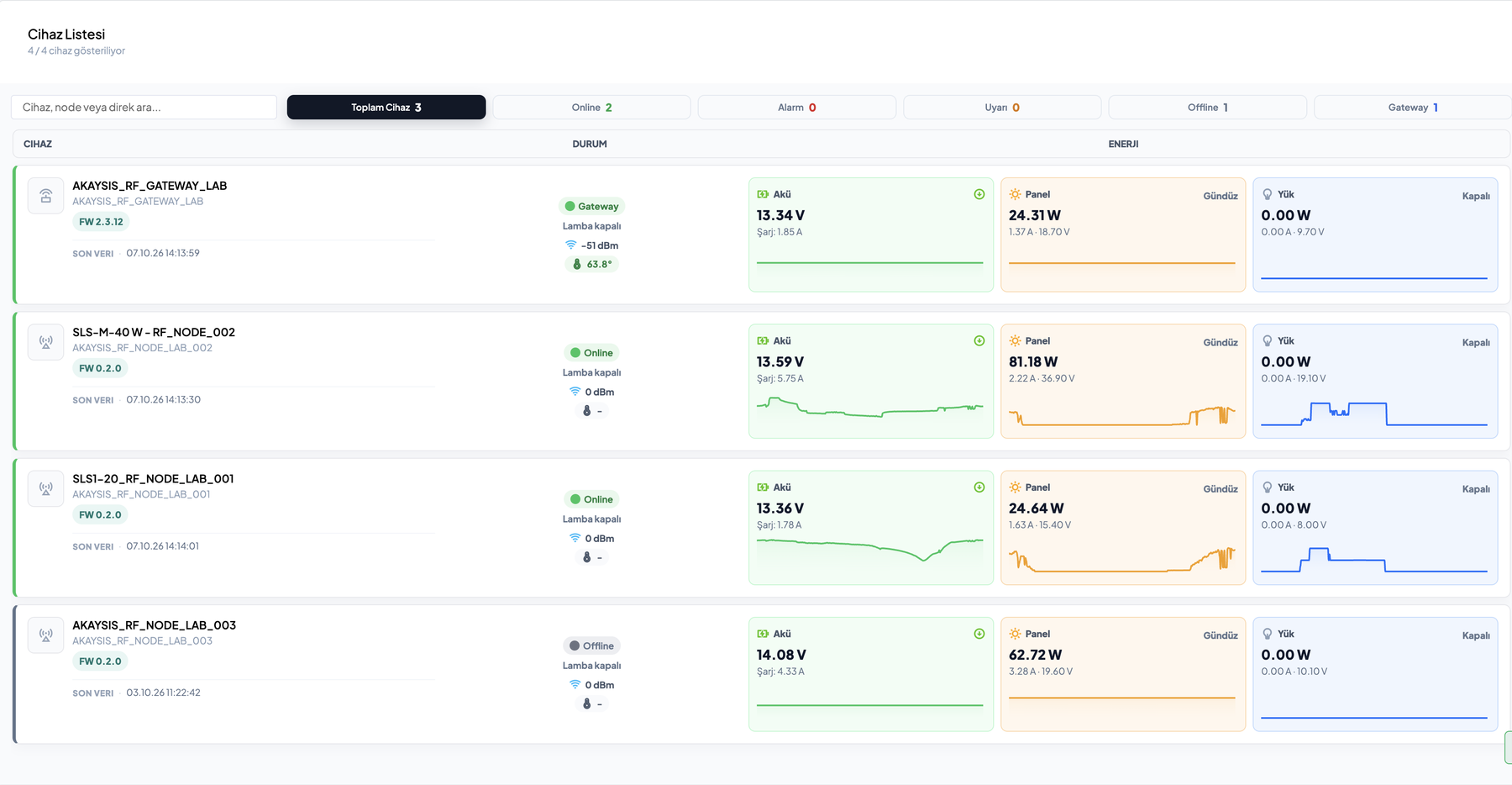

Real screen · Web console · Devices
Voltage and charge current, with the trend of the last hours.
Power, voltage and current. Day or night is shown.
Lamp power and current, on or off, and the dimming level.
Signal level, last contact and software version.
Real screen · Remote setup
Settings that used to need a ladder and a laptop are sent from the browser — to one lamp or to a selected group.
Brightness level for the night.
Up to five time periods, each with its own brightness.
When the lamp turns on and off, and the delay.
Charge and protection voltages that keep the battery healthy.
Set in milliamps; the value you send is the value stored.
Send to one lamp, or to a whole group at once.
Confirmed commands · ACK
You never have to guess whether a setting arrived. The lamp answers, and the answer appears on your screen.
You press send in the web console.
The gateway carries it to the lamp over radio.
The lamp writes the new value.
The lamp reports what it stored. That is the ACK.
The console stores what the lamp reported, not what was asked.
Settings, lamp on/off, test, reboot and updates.
Alerts
When a lamp raises a fault, AKAYSIS sends a message to the right people. Nobody has to watch the screen all night.
WhatsApp and e-mail switched on separately for each lamp.
Choose the level — for example, critical faults only.
Your team, plus extra phone numbers and mail addresses.
Example messages · Gateway power
No mains connection needed. The gateway has its own solar panel, battery and charge controller, and reports its own energy to the console.
Power, voltage and current.
Voltage, and whether it is charging or discharging.
Energy collected and used today.
Enclosure and processor temperature.
Shows whether the charger is answering.
Any pole with sun. No cable trench.
Remote update · OTA
Gateway software is updated from the console. The gateway on the pole downloads the package, checks it, installs it and restarts by itself.
Choose the gateway and press update.
The package is downloaded and verified before install.
The ring on the box turns blue while it works.
The new version appears in the console.
Feedback on the pole
The gateway shows what it is doing with a ring of 12 lights. A technician on site knows the state without opening the box.
Green runs clockwise — data going out to the lamps.
Green runs back — answers coming in.
Red on the return — the answer was an error.
Red blink — network down. Faster blink — local link down.
Blue flow — new software is being installed.
Luminaires
Street, park and decorative solar luminaires — all-in-one or with separate panel — become AKAYSIS lamps with the RF node inside.

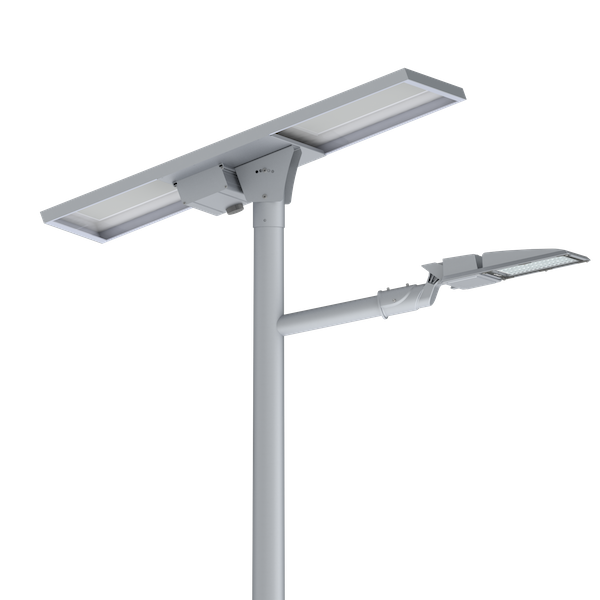

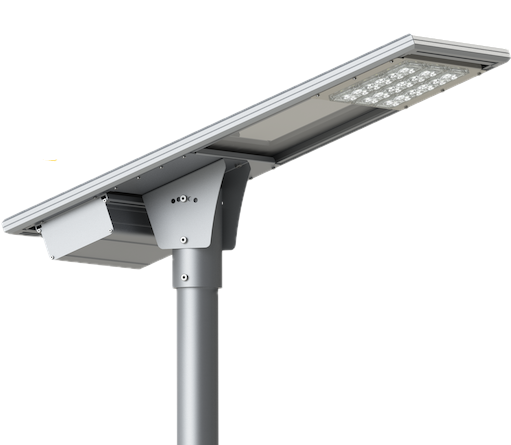

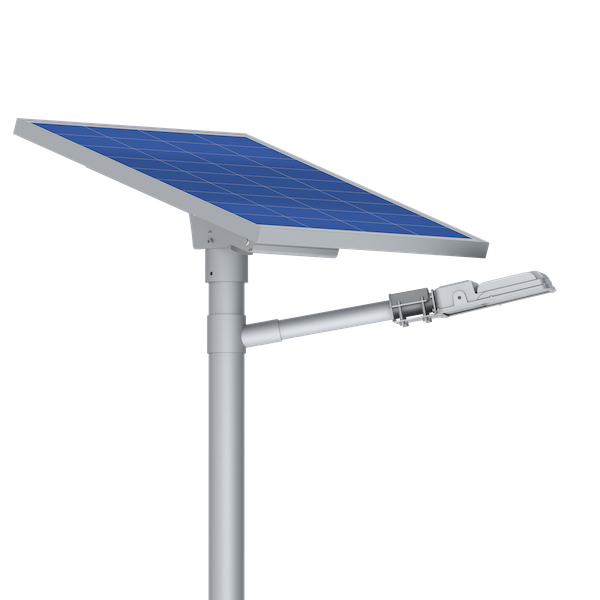

Split panel streetAll-in-one streetHigh-power street

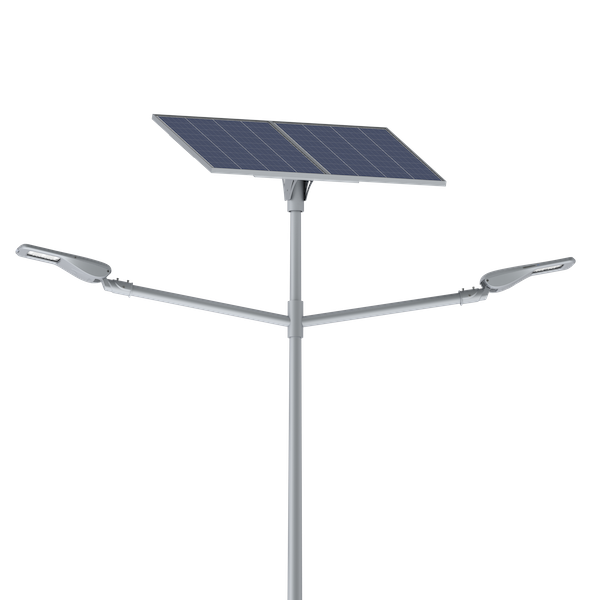

Double-arm road

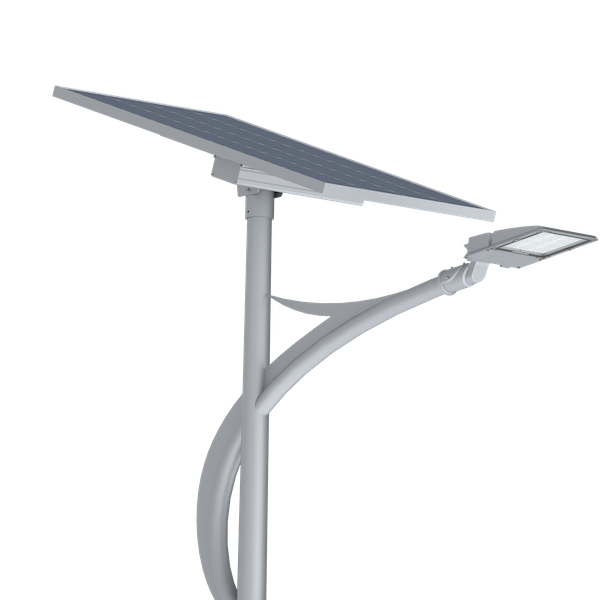

Curved-arm road

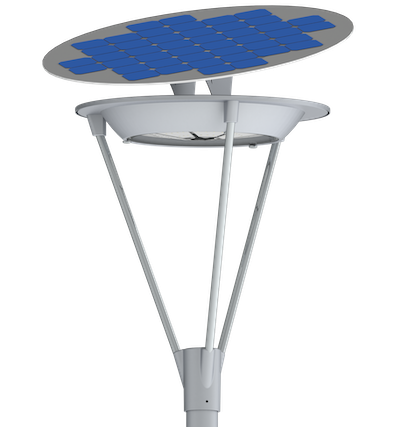

Park and gardenAt a glance
Online lamps, energy, battery and alarms.
Every lamp and gateway at its real location.
Battery, panel and lamp data from each pole.
Dimming, night profile, battery and current.
Every write is acknowledged by the lamp.
Alarms sent per lamp, by level, to your team.
200 lamps within 5 km on one gateway.
No mains needed; its own energy reported.
Gateway software updated from the console.
State visible on the pole from the ground.
Each customer sees only their own field.
Admins and viewers; English and Turkish.
